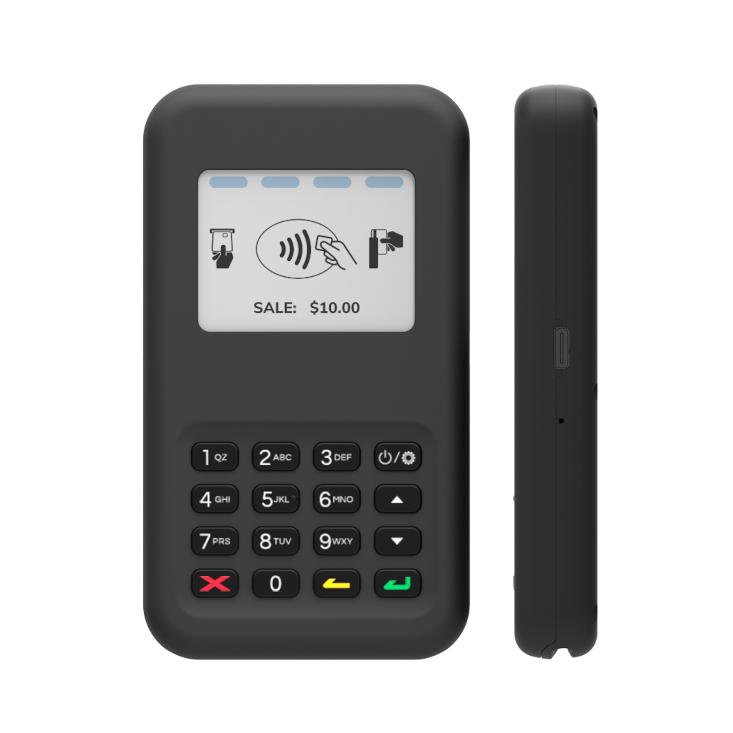

Wisepad 3 | Wisepad 3S
Compact Bluetooth® Mobile Card Readers
The WisePad 3 and WisePad 3S are compact Bluetooth® mobile card readers designed to deliver secure, reliable payment acceptance wherever business happens. Supporting EMV chip, magnetic stripe, and contactless (NFC) payments, they pair seamlessly with smartphones and tablets to provide a fast, flexible mobile payment solution.
Highlights
- Compact & Lightweight Design
- Chip, Swipe & Contactless Payments
- Bluetooth® Wireless Connectivity
- Bright 2.4″ Color Display
Ideal Use Cases
- Mobile Businesses
- Retail Stores
- Delivery Services
- Field Service Professionals
- Events & Pop-Up Shops
- Queue Busting & Line-Busting
Why Choose the Wisepad 3?
- Accept Payments Anywhere
- Fast & Secure Transactions
- Simple Bluetooth® Pairing
- Lightweight & Easy to Carry
- Reliable Performance for Mobile POS
- Trusted Payment Security
Product Resources
Key features
EMV contact reader
Supports secure chip card transactions by inserting EMV cards into a certified reader that encrypts and protects cardholder data.
EMV contactless reader
Enables fast, touch-free payments using NFC-enabled cards and mobile wallets for a smooth and convenient checkout experience.
Secure PINPAD
Features an integrated, encrypted PIN pad that allows customers to safely enter their PIN to authenticate transactions.
Triple track magnetic stripe card reader (only for wisepad 3s)
Reads all three magnetic stripe tracks to support reliable swipe transactions for compatible credit and debit cards.
Specifications
Wisepad 3 | Wisepad 3S
| Display | 2.4″ color LCD ( 320 x 240 ) with Backlight |
| Buttons | 10 numerical button, on/o button, 2 functional button; Clear, enter and cancel buttons |
| Communication Interface | USB |
| Connectivity | Bluetooth BLE 4.2 Dual mode |
| Power & Battery | Li-polymer battery, 3.7v, 750 mAh backup battery, CR2016 |
| Charging | Via USB-C , 2-3 hours for fully charged |
| Indicator | No (Charging Status and EMV contactless status shown on LCD) |
| Key Management | DUKPT, MK/SK |
| Encryption Algorithm | TDES, AES |
| Swipe Speed | Wisepad 3: N/A Wisepad 3S: 15cm/s – 100cm/s |
| Battery Life | Above 350 EMV transactions, or 700 MSR transactions (if applicable), or 350 EMV contactless transactions, or 24 hrs stand-by for one fully charge |
| Supported Operating System | Android 4.2 or above, iOS 6.0 or above |
| Certifcations | EMV Level 1 & 2, PCI PTS v5.X with SRED Mastercard TQM Visa Ready, Mastercard MPOS, AMEX EMV Contactless Level 1 Visa payWave, MasterCard PayPass CE, FCC RoHS CA PROP 65 BQB |
| Dimensions | 69.7 x 121.7 x 17.7 mm / 2.74 x 4.79 x 0.7 inch (approx.) |
| Weight | 130g / 4.59oz (approx.) |
| Packaging Box | Size: 110 x 191 x 29 mm Material: Paper |
