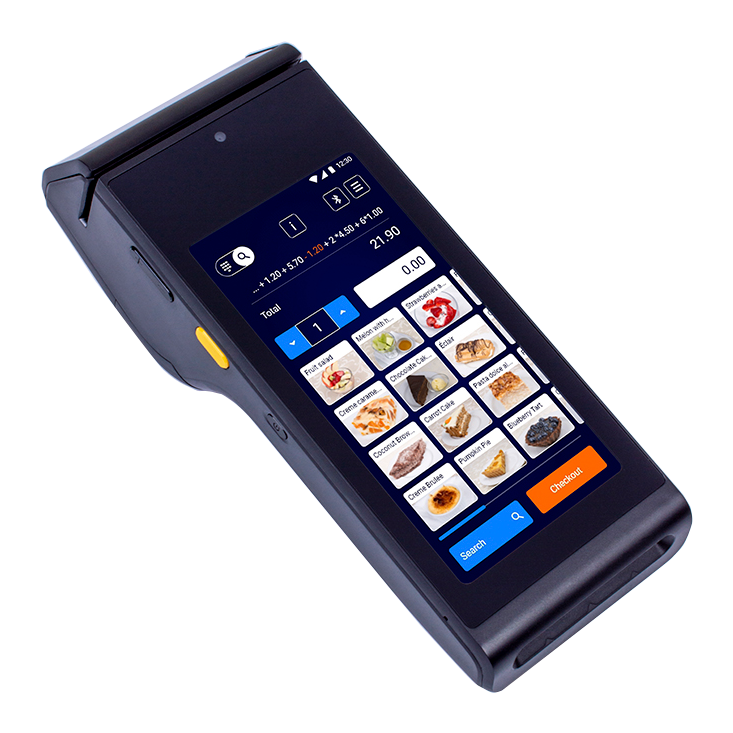

AC Glass 50
Powerful. Portable. Built for Business.
All-in-One Android Payment Terminal with Integrated Printer
The AC Glass 50 combines powerful Android performance with an integrated thermal receipt printer in one sleek, lightweight device. Designed for retail, hospitality, and mobile businesses, it delivers fast, secure payment acceptance while streamlining checkout with a compact, all-in-one design.
Ideal use Cases
- Retail Stores
- Restaurants & Cafés
- Grocery & Convenience Stores
- Hospitality
- Healthcare & Pharmacies
- Mobile Businesses & Events
Keep Business Moving
- Complete All-in-One Payment Solution
- Simplifies Checkout & Receipt Printing
- Designed for Fast-Paced Business Environments
- Secure, Reliable Payment Acceptance
- Compact Design with Enterprise Performance
- Easy Integration & Deployment
Product Resources
Key features
Android Based Terminal
Powered by Android, this terminal delivers a smooth, user-friendly interface for efficient card processing and advanced payment solutions.
5.4″ Multi-Touch Display
Enjoy crisp visuals and responsive interaction with the 5.4-inch multi-touch display, integrated printer, 2D barcode scanner, and dual cameras.
High Performance Processor
Equipped with the powerful Quad Core ARM Cortex-A53 – 2.0 Ghz, the AC Glass 50 ensures fast, reliable performance for smooth transaction processing.
Specifications
AC Glass 50
| CPU: | Quad Core ARM Cortex-A53 – 2.0 Ghz, Secure ARM Cortex M3 |
| Memory: | 1 GB RAM, 8 GB Flash (optional), 2 GB RAM, 16 GB Flash (optional), 32 GB Micro SD max extended storage |
| Operating System: | Android 10 |
| Main Camera: | 5 Megapixel camera |
| Secondary Camera: | 0.3 Megapixel camera |
| Display: | 5.4-inch multi-touch 720 x 1440 px |
| Customer Display: | 128 x 32 px OLED |
| Printing Resolution: | 203 x 203 dpi (8 x 8 dpmm) |
| Printing Width: | 48 mm (384 dots) |
| Printing Speed: | 12 lines per second |
| Sensors: | Accelerometer, Proximity sensor, Light sensor |
| Paper Width: | 58 mm |
| Max Roll Diameter: | 40 mm |
| Magnetic Card Reader: | Triple track bi-directional |
| Smart Card Reader: | Friction type |
| Contactless Reader: | NFC-A, ISO 14443 Type A, NFC-B, ISO 14443 Type B, NFC-F, Felica, NFC-V, ISO 15693 |
| Contactless Payments | VISA payWave, MasterCard PayPass, American Express, DPAS, China UnionPay |
| Barcode Reader (optional): | 2D Zebra SE4710 – 1280 x 800 CMOS |
| Connectors: | 2 x nano SIM card slots, SAM card slot, Micro SD card slot (max 32 GB), RS-232 contact pins, USB Type-C port, 3.5 mm TRRS port |
| Wired Communication: | USB |
| Wireless: | IEEE 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz |
| Cellular Module: | 2G/3G/4G |
| GNSS: | GPS, A-GPS, BeiDou, GLONASS, Galileo |
| Audio Features: | 90 dB speaker, Electromagnetic buzzer, Microphone |
| Power Supply: | USB Type-C multi-voltage adapter, DC 5 V through USB, DC 5 V through contact pins |
| Battery: | Rechargeable Li-Ion Battery, 7.4 V, 2600 mAh |
| Certificates: | CE, FCC, RoHS, MasterCard TQM, PCI PTS 5.x SRED, EMV Level 1, EMV Level 2,EMV Level 1 Contactless |
| Dimension W x D x H: | 82 x 206 x 61 mm |
| Weight: | 506 g |
| Drop Tested: | 1.2 m, faces and edges |
